wooden range hoods

Custom Range Hood cover

  • Serving Los Angeles , San Bernardino and Orange county
  • High quality plywood
  • 2 pieces design
contact us

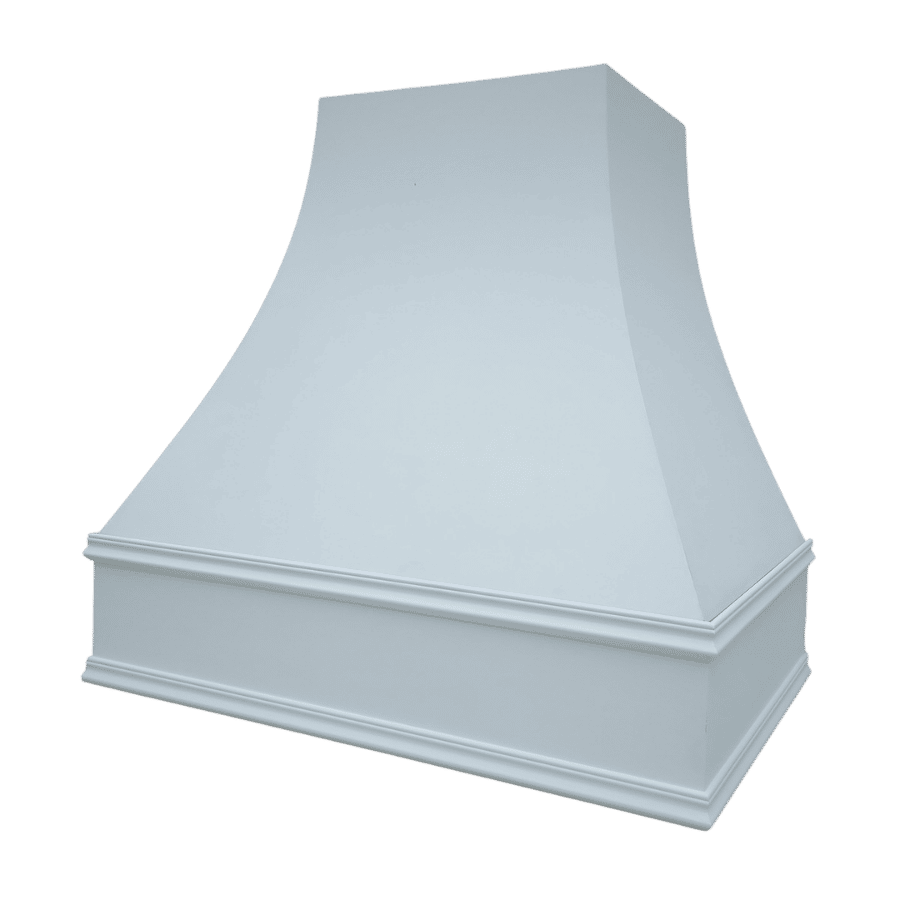

hood perfil 900x900 png

EASY INSTALLATION

Easy access to fan and ducting

Perfect choice for homeowners.

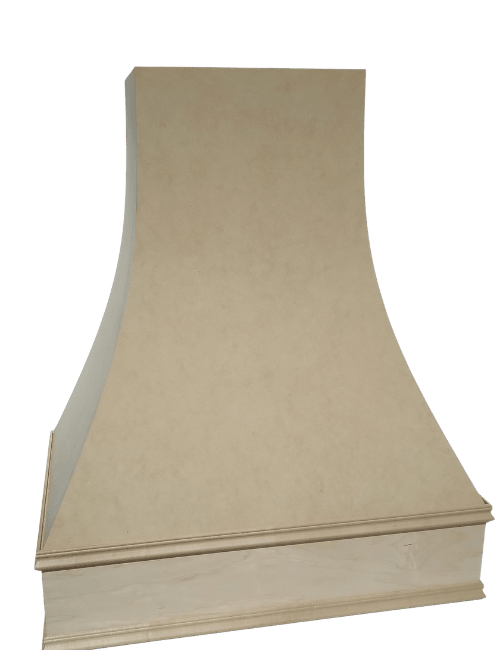

Curved Hood range cover

Attractive design for kitchen ventilation systems.

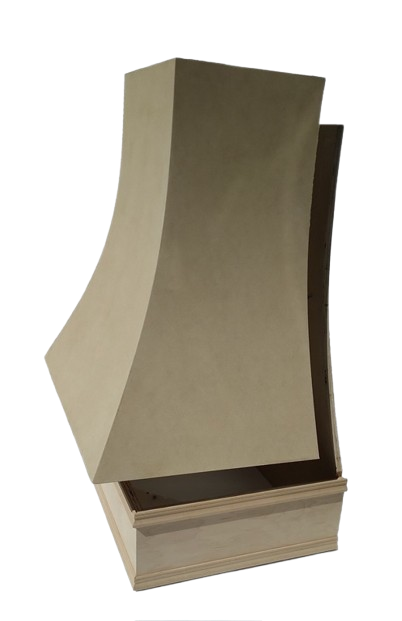

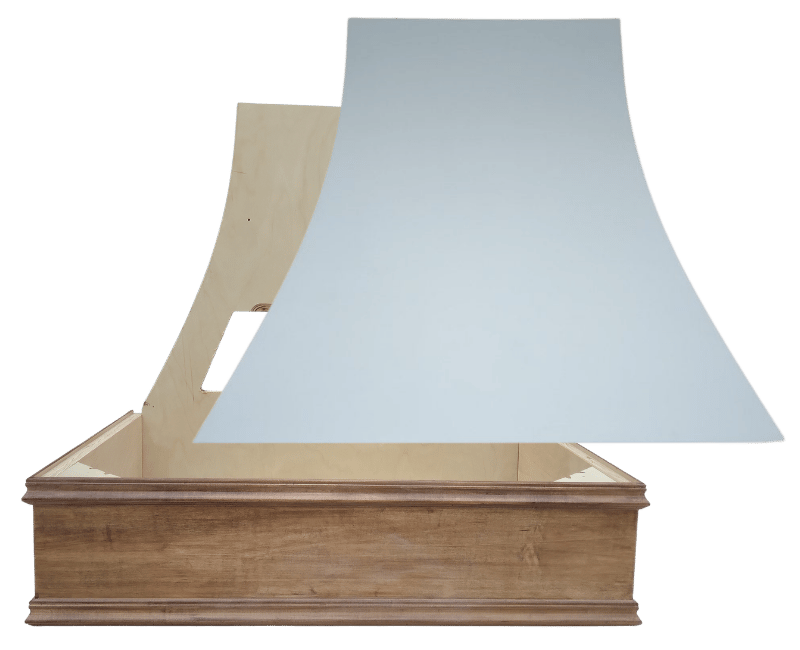

Two pieces hood construction

2 pieces 800x650 png

PARTS OF THE HOOD​

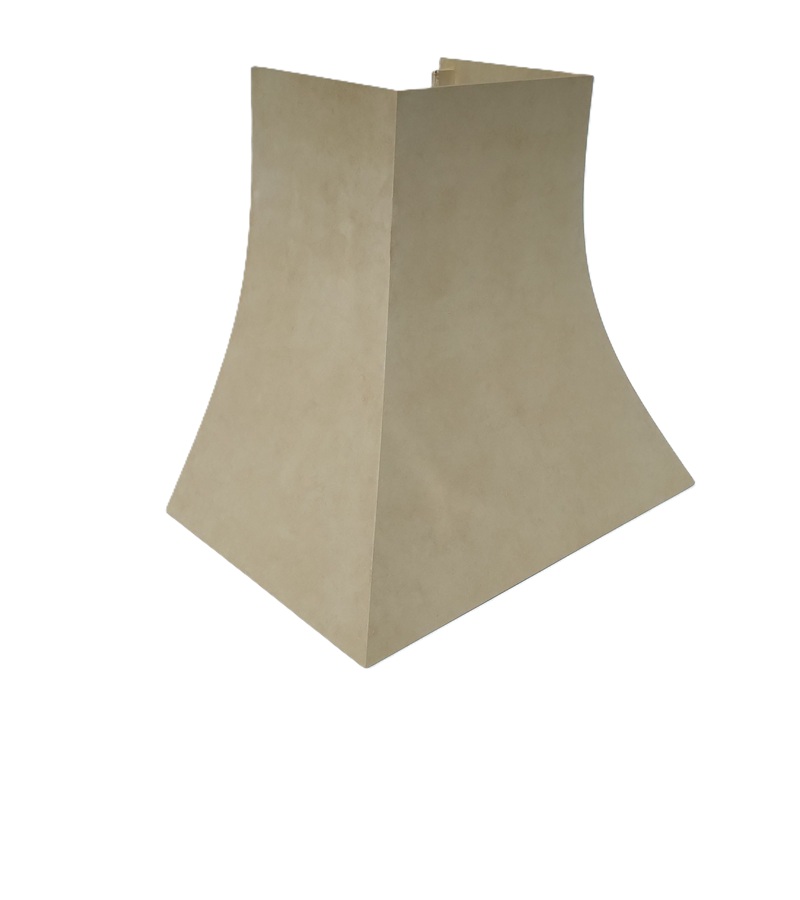

CHIMNEY

Made of 3 layers medium Density Fiberboard.

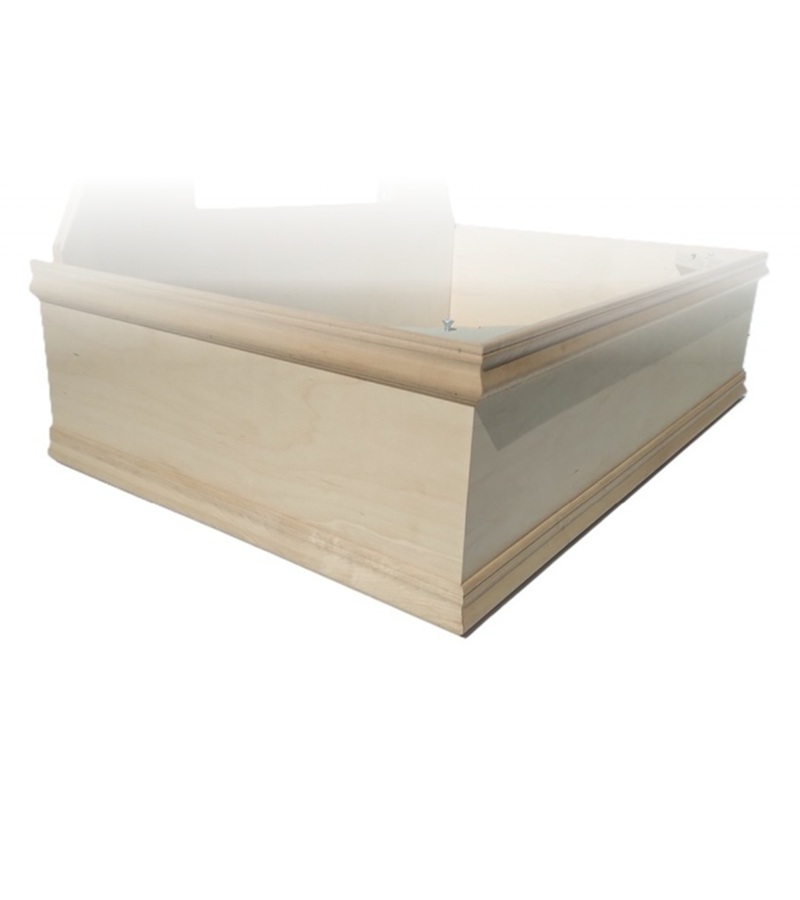

APRON

Cabinet grade domestic plywood – (maple).

range hood back 800x900

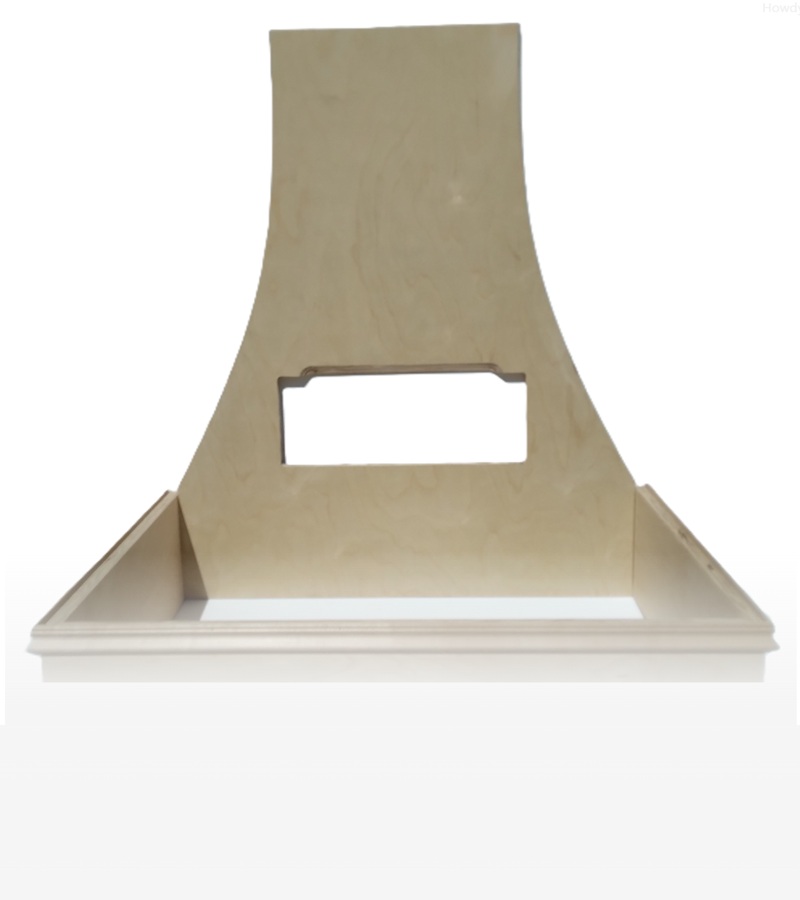

BACK

High quality plywood (birch).

What materials we use for our hoods ?

We use cabinet grade plywood ( maple ) ,and Medium density fiber board ( MDF )for the Chimney, the Trim is made of solid wood maple.

contact us

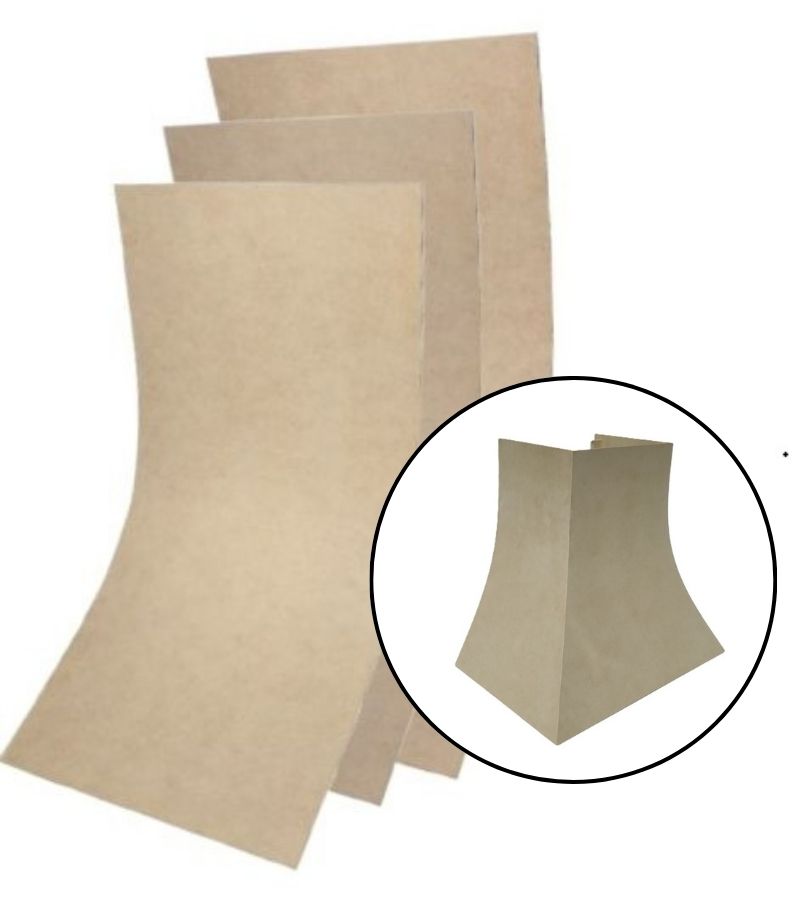

Three layers of laminated MDF

  • 1/8 ” MDF each layer
three layers of medium density fiberboard

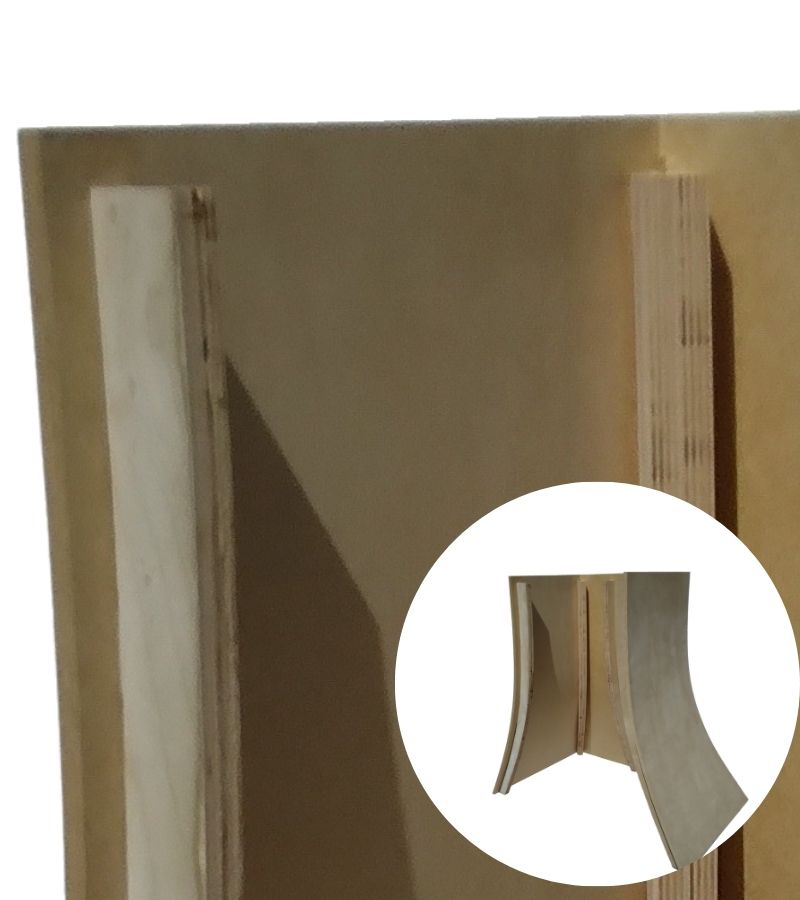

Ribs made of plywood

  • Ribs in corner gives strenght
Ribs - plywood

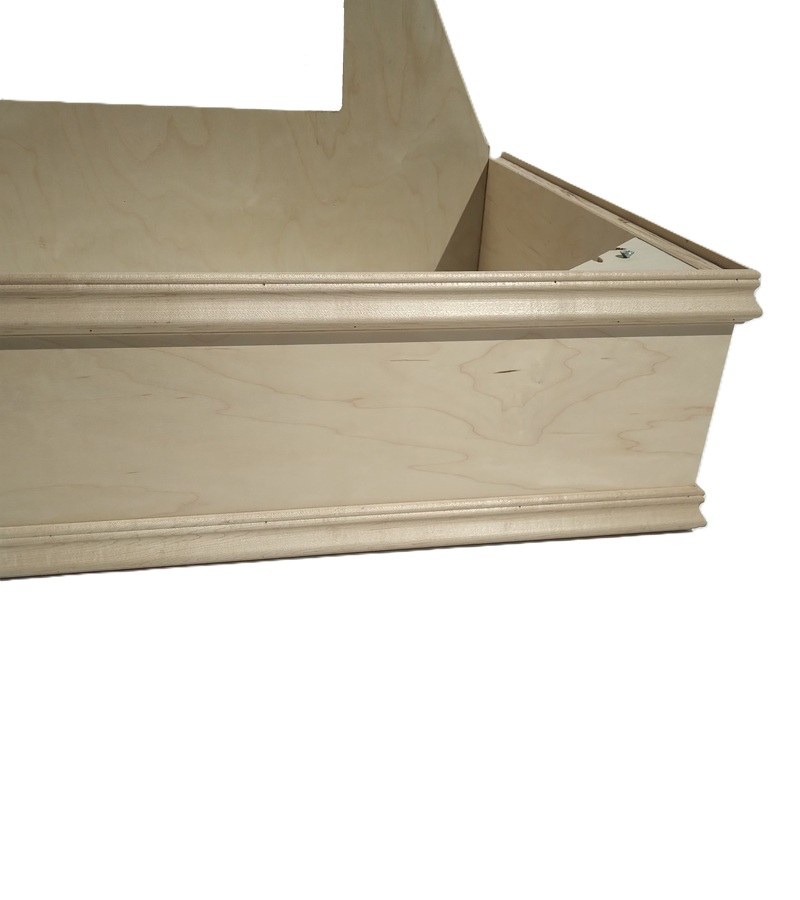

Cabinet grade plywood (Maple)

  • Apron made of plywood
apron 8x9 x100

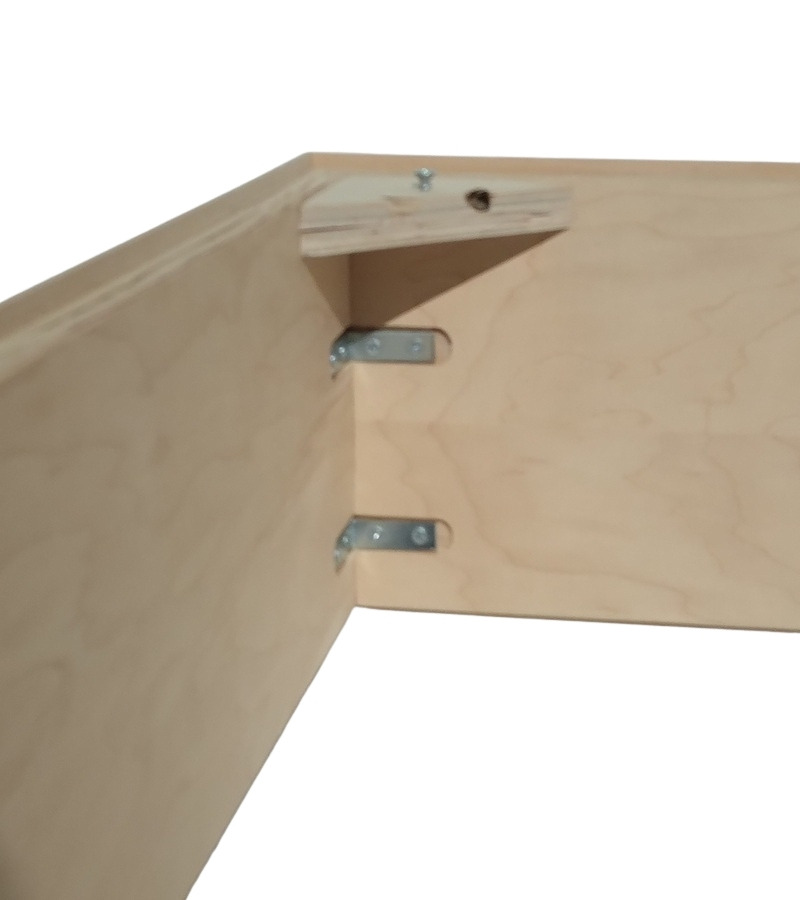

Apron reinforced with L brackets

  • … and corner brace
Apron reinforced with L brackets

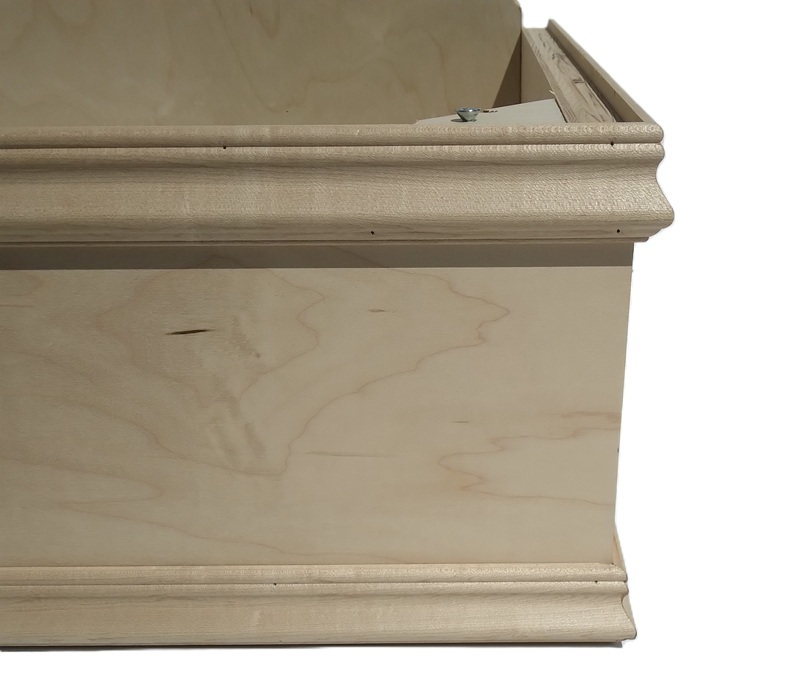

Solid wood Trim

  • 3/8″ thickness (maple)
solid maple moulding

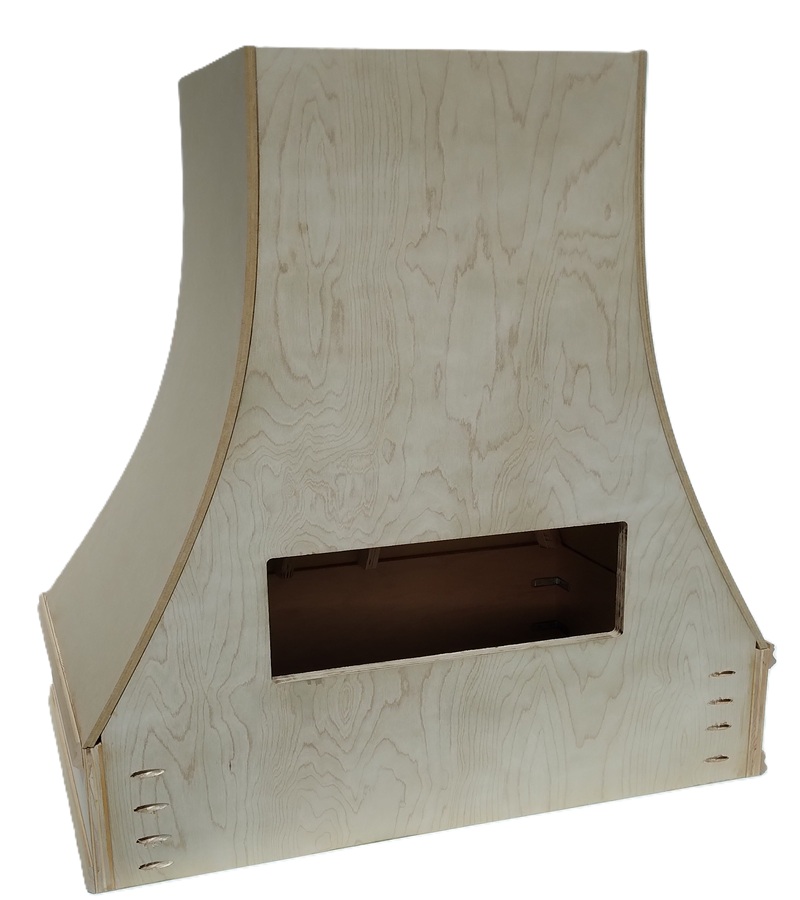

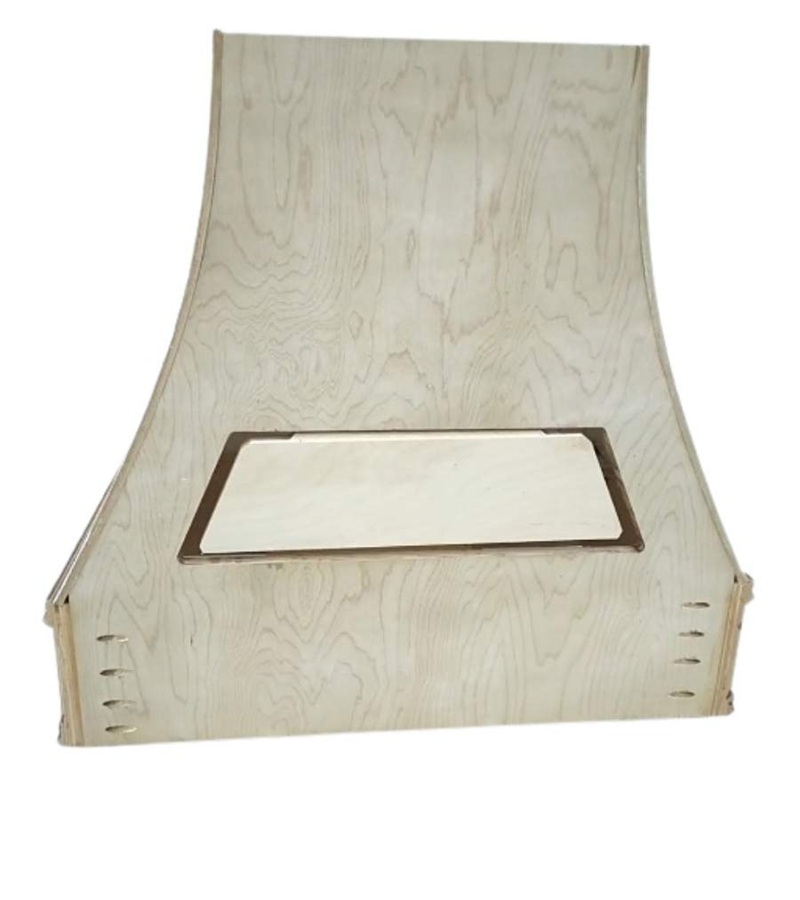

“Back” made of plywood (Birch)

  • With mounting cleat
back -with mounting cleat

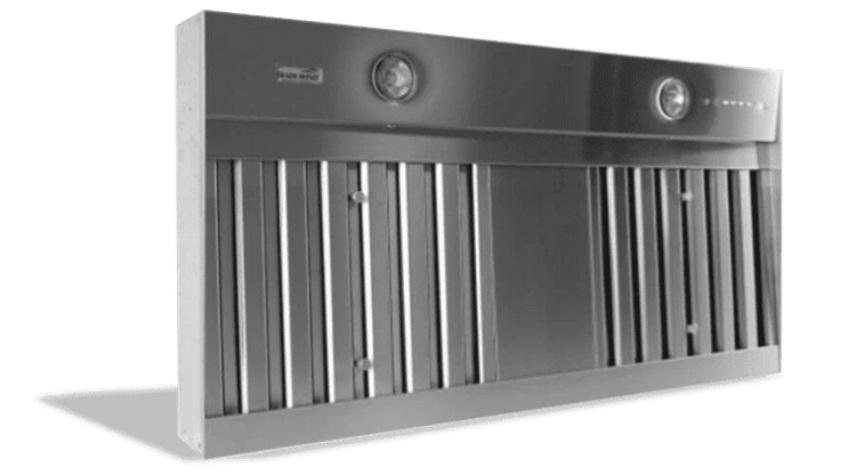

Range Hood Liners

High quality range insert are the key to keeping your kitchen free of smoke, grease and odor.

Our hoods are designed for a perfect match with “Trade wind” ventilation units.  (SKUs: VSL4303RC, VSL4306RC, VSL4363RC, VSL4366RC, VSL43612RC).

range hood insert

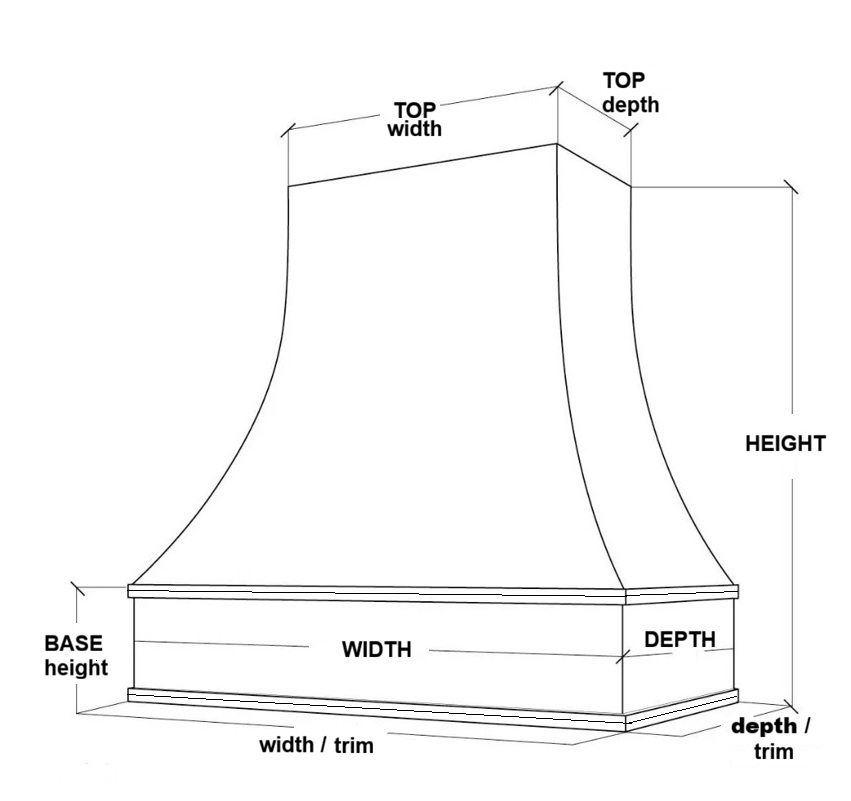

Range hood cover dimensions ( inches )

hood dimensions

WIDTH /HEIGHT /BASE.height

DEPTH

Width w/ trim

Depth w/ trim

TOP width

TOP depth

Interior width

Interior depth

30 W x 30 H x 7 7/16

19 1/2″

30 3/4″

19 7/8″

15 1/16″

12 1/8″

28 1/2″

18″

36 W x 30 H x 7 7/16

19 1/2″

36 3/4″

19 7/8″

21 1/16″

12 1/8″

34 1/2″

18″

42 W x 30 H x 7 7/16

19.1/2″

42 3/4″

19 7/8″

27 1/16″

12 1/8″

40 1/2″

18″

48 W x 30 H x 7 7/16

19 1/2″

48 3/4″

19 7/8″

33 1/16″

12 1/8″

46 1/2″

18″

OUR HOOD DIMENSIONS

STANDARD WIDTHS

30″

36″

42″

48″

without trim

STANDARD HEIGHTS

30″

36″

48″

without trim

DEPTH

19 1/2″

without trim

Custom dimensions

… contact us

for details

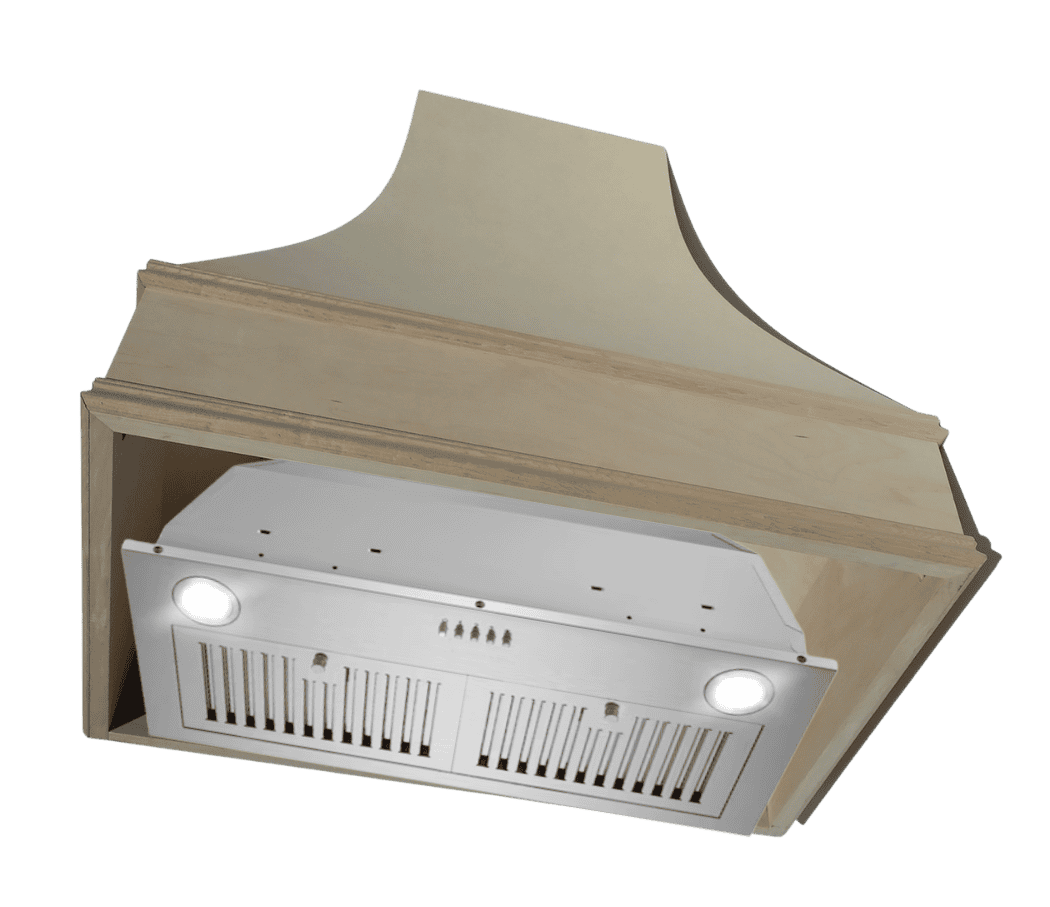

Use your own Range Hood Insert

If you want to upgrade your kitchen with a beautiful Custom range Hood , you can use your own Ventilator (or Insert ) or you can buy a less expensive Insert. We are going to need the dimensions to make sure the Ventilator will fit.

  • Don’t buy a expensive one
  • Save money
contact us
use your own insert

How my Vent insert needs to be ?

Send us the measurements to determine if your Ventilator will fit our Hood.

1

insert measurement info large -small
  • If you have this kind of Ventilator measure every side

2

insert image 500x346
  • Do not forget to measure the height

Frequently asked questions

No we don’t, but we recommend a few brands like Broan and Tradewinds for our standard sizes.

Since the top part or Chimney is made of MDF (Medium Density Fiberboard) you can use any kind of topcoat like : lacquer , water base paint , polyurethane etc. you can treat the MDF like it is a wood ,the only thing we don’t recommend is using any kind of stain . The bottom part or Apron is made of high quality plywood (Maple) and is perfect if you want to use stain, it will enriched the grain, or you can topcoat it with the other products we mention above.
